Cleaning, drying and corrosion protection in a single process
Complete cleaning of the tools with automatic drying
Maximum Load: 350 Kg.
Can clean 2 stacks of big saw blades (>ø400 mm.)

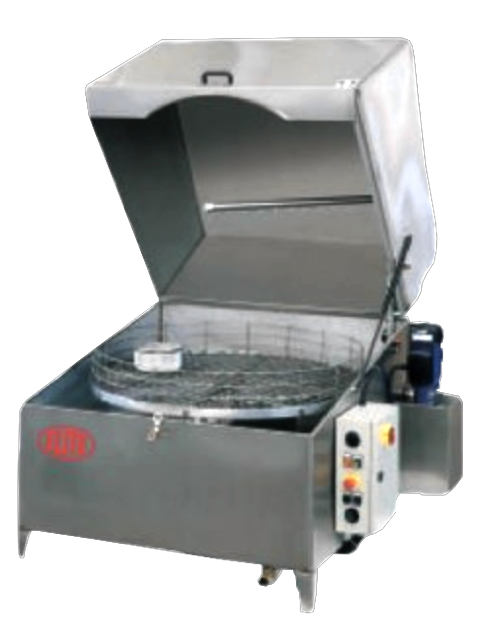

The Elite LAVAmaq 1150 provides a tool cleaning system that will save you a lot of operator time. Insert dirty tools such as circular saws, blades or milling cutters into the machine and within 10 to 15 minutes they will be completely clean, dry and protected against corrosion.
The cleaned tool is ready to be introduced into the grinder without contaminating the coolant.
It allows to clean saws and tools up to a diameter of 1150 mm.
You can also insert the already sharpened tools for 1 minute so that they receive a corrosion protection that is completely dry and unnoticed.
| Maximum tool dimensions | ø1150×700 mm. (Diameter x Height) |
|---|---|
| Maximum tool weight | 350 kg |
| Cleaning temperature | up to 60ºC |
| Pump | 170 l/min and 3,5 bar |
| Water tank capacity | 270 liters |
| Connection | 400V or 220V 3 Ph. 50/60 Hz. |
Technical data
Optional accesories
- Vapor exhaust
- Automatic filler for the tank
- Automatic drain of the tank
- Automatic oil separator
- Grid for the placement of discs
Available versions
| Model | Net size | Packing weight |
|---|---|---|
| LAVAmaq 1150 | 1800 x 1550 x 2140 mm. | 300 Kg. |
HIGHLIGHTS
- Machine made of high quality stainless steel plate with 2 mm. thickness
- Adjustable water heating temperature up to 60ºC
- Programmable timer from 1 to 30 minutes of the washing cycle
- Biodegradable detergent with tool corrosion protection
- Optional motorization of the tool carriage
- Draining system for quick and easy change of the liquid

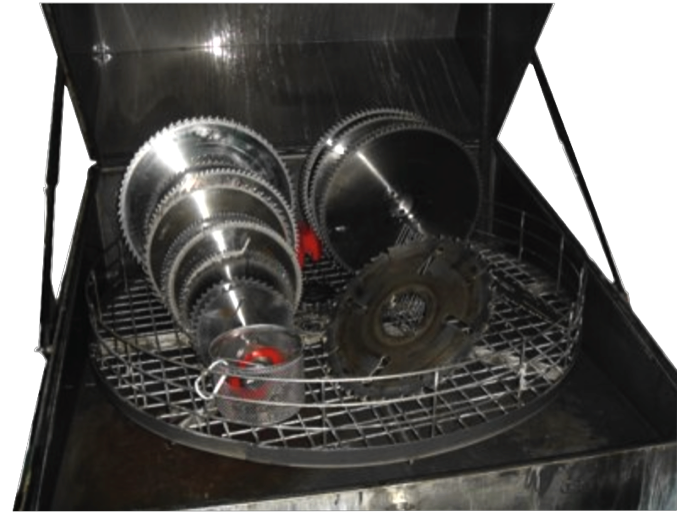

Loading of tools
Circular saw blades cleaned
