Cleaning, drying and corrosion protection in a single process
Complete cleaning of the tools with automatic drying
Maximum Load: 200 Kg.
Máx. 1 stack of big saw blades (>ø400 mm.)
The Elite LAVAmaq 910 provides a tool cleaning system that will save you a lot of operator time. Insert dirty tools such as circular saws, blades or milling cutters into the machine and within 10 to 15 minutes they will be completely clean, dry and protected against corrosion.
The cleaned tool is ready to be introduced into the grinder without contaminating the coolant.
It allows to clean saws and tools up to a diameter of 900 mm.
You can also insert the already sharpened tools for 1 minute so that they receive a corrosion protection that is completely dry and unnoticed.
| Maximum tool dimensions | ø900×500 mm. (Diameter x Height) |
|---|---|
| Maximum tool weight | 200 kg |
| Cleaning temperature | up to 60ºC |
| Pump | 170 l/min and 2,3 bar |
| Water tank capacity | 170 liters |
| Connection | 400V or 220V 3 Ph. 50/60 Hz. |
Optional accesories
- Automatic rotation for LAVAmaq 910 tray. Necessary with high resistance dirt as resins.
- Inox steel tray for LAVAmaq 910
- Vapor exhaust
- Automatic filler for the tank
- Automatic drain of the tank
- Automatic oil separator
- Grid for the placement of discs
Available versions
| Model | Net size | Packing weight |
|---|---|---|
| LAVAmaq 910 | 1290 x 1230 x 1900 mm. | 140 Kg. |
Technical data

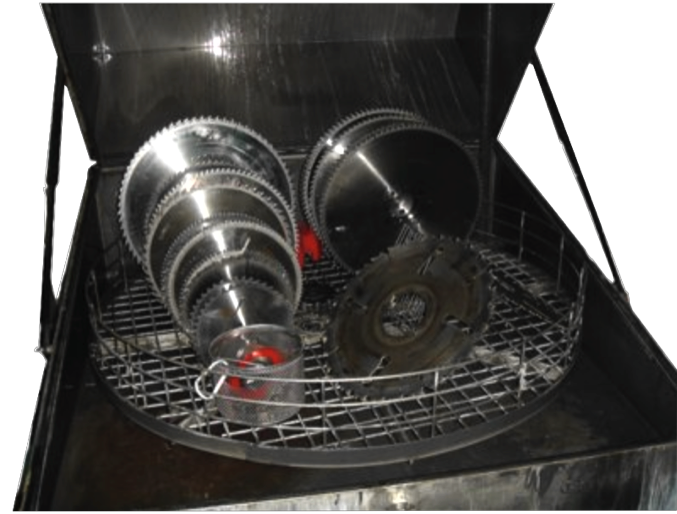

Loading of tools

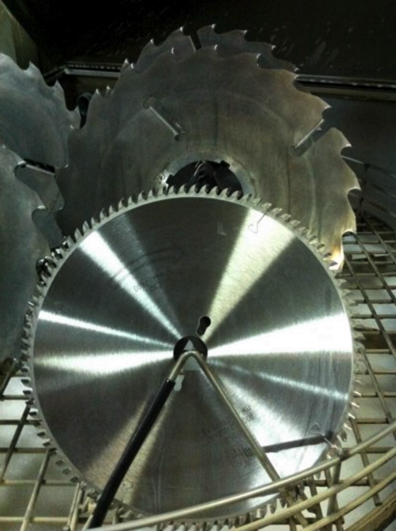

Circular saw blades cleaned

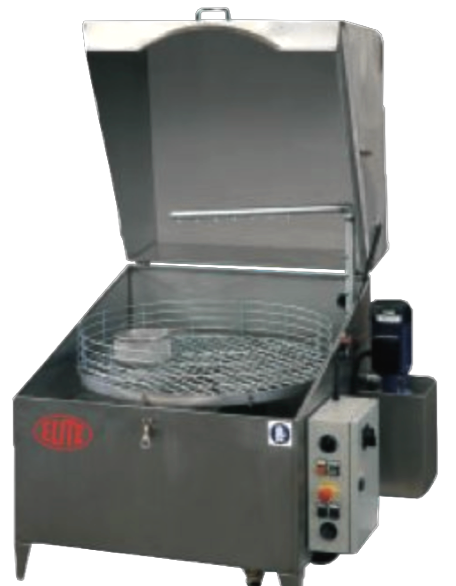

MACHINE OVERVIEW
HIGHLIGHTS
- Machine made of high quality stainless steel plate with 2 mm. thickness
- Adjustable water heating temperature up to 60ºC
- Programmable timer from 1 to 30 minutes of the washing cycle
- Biodegradable detergent with tool corrosion protection
- Optional motorization of the tool carriage
- Draining system for quick and easy change of the liquid
