Economic bandsaws and circular sawblades grinding machine for sawmill.
For sharpening bandsaws from 20 (3/4") to 250 mm (9,8")
Durable and low maintenance sharpening machine.

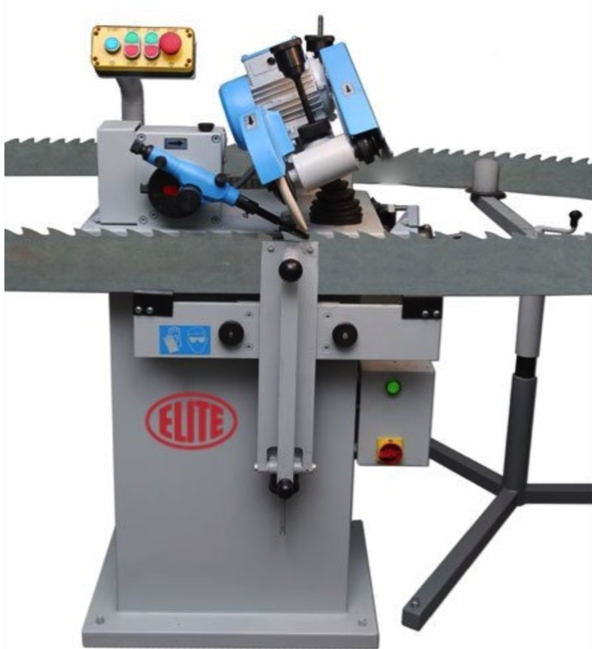

The ELITE model SC 10 is our band saw sharpening machine for sawmills that need to sharpen bandsaws from 20 to 250 mm with different tooth shapes.
Band saws can be sharpened up to a length of 12 meters.

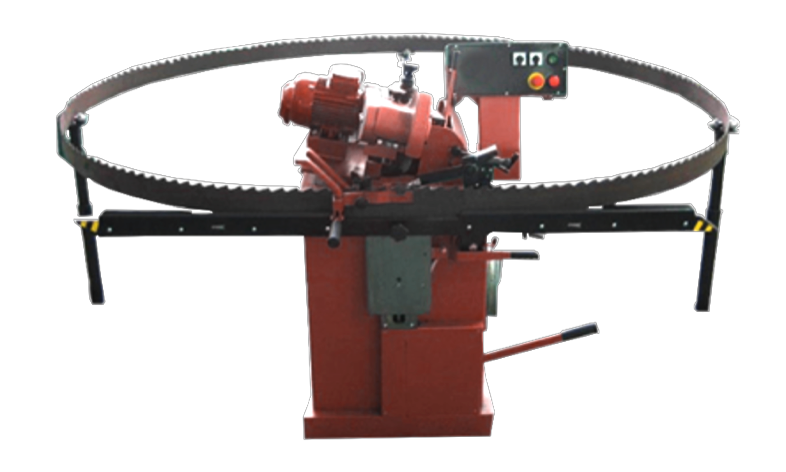

Band saw sharpening

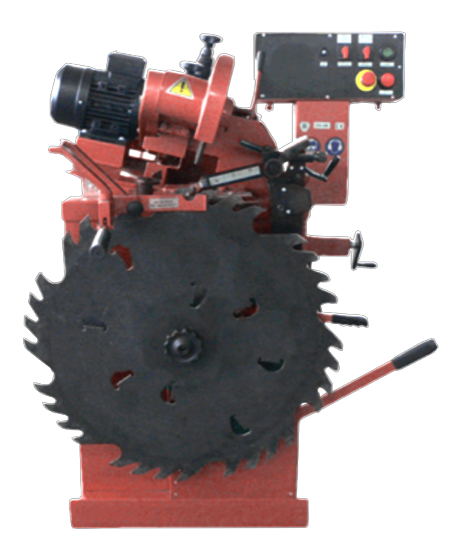

Circular saw blades sharpening
| Band saw width | from 20 to 250 mm. (3/4" to 9,8") |
|---|---|
| Band saw thickness | up to 6 mm (0,23"). |
| Tooth pitch | from 0 to 55 mm. (0" to 2-1/4") | Tooth profiles | N, O, S, SB |
| Angle | from 3º to 30º |
| Grinding wheel motor | 0,75 kW |
| Saw blade diameter | from 250 to 450 mm. (9,8" to 17,7") |
Technical data
Optional accesories
- Set of 2 stands for bands up to 12 meters length
- Complete refrigeration system
- Grinding dust extraction system
Available versions
| Model | Packing size | Packing weight |
|---|---|---|
| SC 11 | 1200 x 820 x 1560 mm | 185 Kg |
HIGHLIGHTS
- Low maintenance
- Easy to use: suitable for both professional to beginners workshop operators
- Sharpening of band and circular saw blades
- It can be sharpened ban saws to a length of up to 12 metres

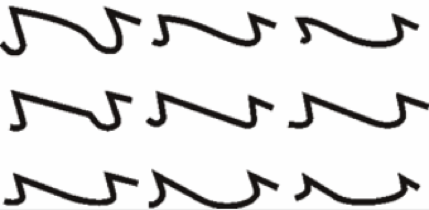

Different tooth profiles that can be sharpened: N, O, S, SB
