Sturdy and long life bandsaw and circular sawblades sharpening machine for sawmill.
For sharpening bandsaws from 20 (3/4") to 250 mm (9,8")
Low maintenance sharpening machine.

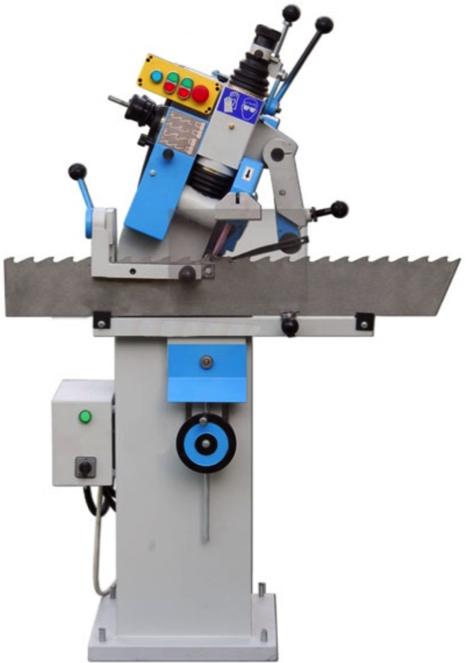

The ELITE model SC 11 is our sturdiest band saw sharpening machine for sawmills that can sharpen band saws from 20 to 250 mm with different tooth shapes.
The ELITE SC-11 improves in a more resistant and durable construction compared to the Elite SC-10
Band saws can be sharpened up to a length of 12 meters.
It can also sharpen steel or CV circular saw blades.
| Band saw width | from 20 to 250 mm. (3/4" to 9,8") |
|---|---|
| Band saw thickness | up to 6 mm (0,23"). |
| Tooth pitch | from 0 to 55 mm. (0" to 2-1/4") | Tooth profiles | N, O, S, SB |
| Tooth angle | from 3º to 30º |
| Grinding wheel motor | 0,75 kW |
| Saw blade diameter | from 250 to 450 mm. (9,8" to 17,7") |
Technical data
Optional accesories
- Set of 2 stands for bands up to 12 meters length
- Complete refrigeration system
- Grinding dust extraction system
Available versions
| Model | Packing size | Packing weight |
|---|---|---|
| SC 11 | 1200 x 820 x 1560 mm | 270 Kg |
HIGHLIGHTS
- Sturdy construction and long life machine
- Low maintenance
- Sharpening of bandsaws and circular saw blades
- It can sharpen bandsaws up to a length of 12 metres

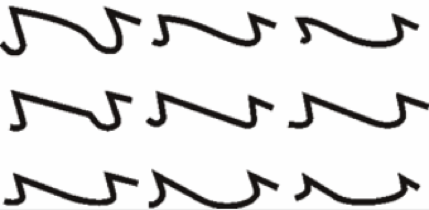

Different tooth profiles that can be sharpened: N, O, S, SB
MACHINE WITH OPTIONAL ELECTRONIC SPEED REGULATOR
