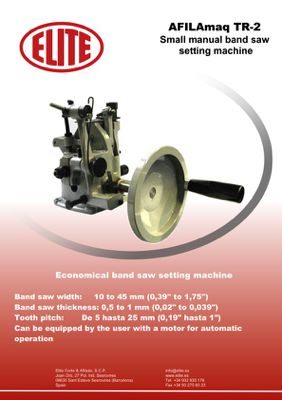

Economical manual band saw setting machine
For band saw blades for carpentry from 10 to 45 mm. (0,39” a 1,75”)
A motor can be optionally coupled for automation

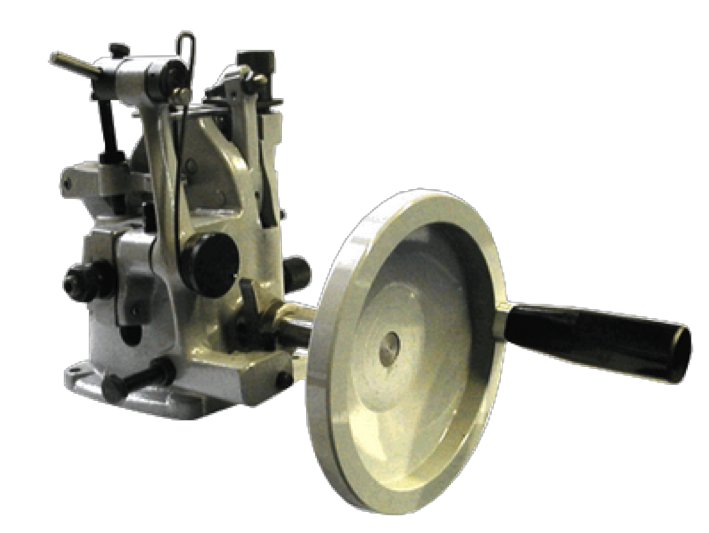

The ELITE TR-2 is our economical and low-maintenance setting machine.
For band saws with a width of 10 to 45 mm.
Can be equipped by the user with a motor for automatic operation
| Band saw width | from 10 to 45 mm. (0,39" to 1,75") |
|---|---|
| Band saw thickness | from 0,5 to 1 mm (0,02" to 0,039") |
| Tooth pitch | from 5 to 25 mm (0,19" to 1") |
Technical data
Optional accesories
- Can be equipped by the user with a motor for automatic operation
Available versions
| Model | Packing size | Packing weight |
|---|---|---|
| TR 2 | 400 x 600 x 350 mm | 9 Kg |
HIGHLIGHTS
- Possibility to choose the setting: left/right or left/right/straight
- Adjustment of the feed pitch, of the setting height and of the tooth bending degree
- Low maintenance
- Easy to use: suitable for both professional to beginners workshop operators
- Self centring clamps
- Can be equipped by the user with a motor for automatic operation

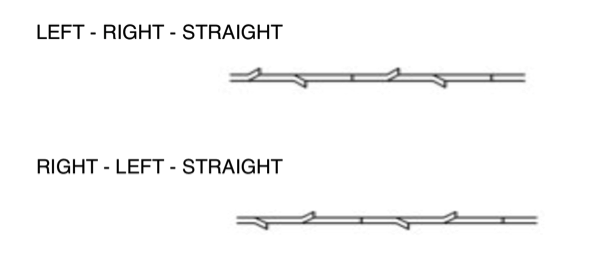

SETTING TYPE
WORKING PRINCIPLE
