| Saw blade diameter | from 100 to 850 mm (from 4" a to 33,5") |
|---|---|
| Saw blade bore diameter | From ø10 mm. |
| Blade thickness | Up to 8 mm. |
| Tooth pitch | Up to 125 mm. |
| BACK OFF GRINDING | |
| Grinding path | Up to 50 mm. |
| Grinding angle | From 0º to -40º |
| TOP GRINDING | Available as an option |
| Clearance angle | From +5º to +25º |
| Bevel angle | 0º |
| Grinding path | Up to 25 mm. |
| FACE GRINDING | Available as an option |
| Hook angle | From -10º to +25º |
| Grinding path | Up to 25 mm. |
| Technical data | |
| Grinding wheel motor | 0,33 kW |
| Grinding wheel speed | 2800 RPM |
| Grinding wheel diameter for back-off grinding and top | ø150 mm. | Grinding wheel diameter for face grinding | ø175 / ø200 mm. |
| Up to 4 CNC axis | C: Feed pawl, Z: Sharpening travel, X: Sharpening load, Optional: B: Tooth angle |
| Machine dimensions | 1410 x 1225 x 1800 mm. |
| Machine weight | 460 Kg. |
| Available versions | Half enclosure - Full enclosure |

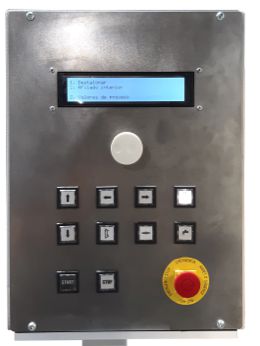

Machine control panel
It allows the programming of the machine, among the programmable values are:
- Tooth angle programming: The grinding wheel axis will automatically move to the value entered in the program.
- Sharpening path
- Sharpening load
- Sharpening speed
- Tooth pitch
- Advancement speed of the tooth advancement claw
- Number of teeth
- Broken teeth

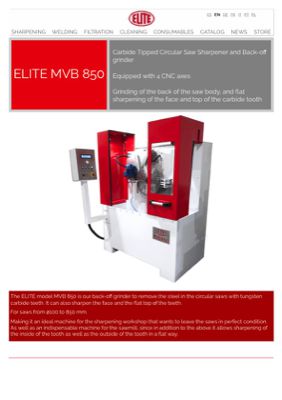

Carbide Tipped Circular Saw Sharpener and Back-off grinder
Equipped with 4 CNC axes
Grinding of the back of the saw body, and flat sharpening of the face and top of the carbide tooth
The ELITE model MVB 850 is our back-off grinder to remove the steel in the circular saws with tungsten carbide teeth. It can also sharpen the face and the flat top of the teeth.
For saws from ø100 to 850 mm.
Making it an ideal machine for the sharpening workshop that wants to leave the saws in perfect condition. As well as an indispensable machine for the sawmill, since in addition to the above it allows sharpening of the inside of the tooth as well as the outside of the tooth in a flat way.
HIGHLIGHTS
- 4 CNC axes for automatic work programmable from the control panel
- Programmable tooth pitch
- Back-off grinding of the saw body, sharpening the inside and sharpening the flat outside
- Easy to use
- Very compact machine with a wide range of disc diameters: from 100 to 850 mm.

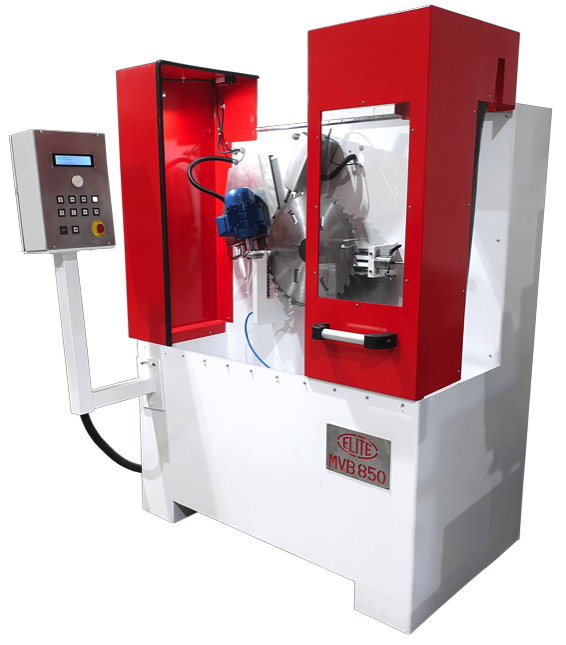

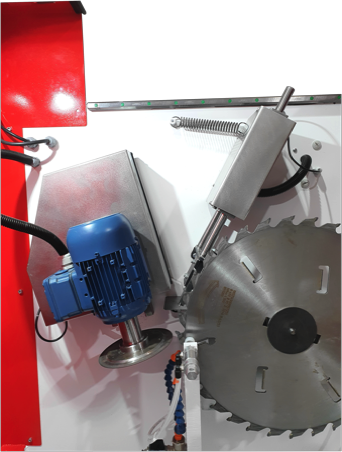

MACHINE OVERVIEW

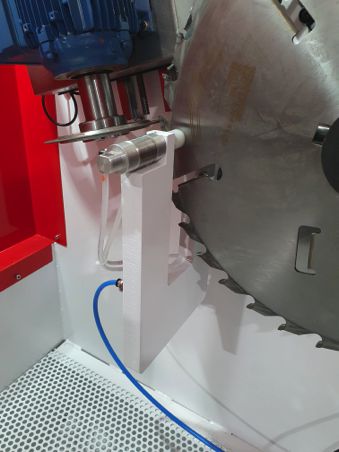

BACK-OFF GRINDING
FACE GRINDING
SLOW TOOTH INDEXING
FAST TOOTH INDEXING
ELITE MVB 850

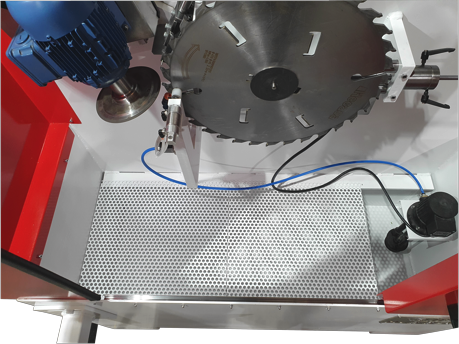

Coolant tank
Big coolant tank with capacity up to 225 liters
| Model | TOP GRINDING | FACE GRINDING | BACK OFF GRINDING | SIDES GRINDING |
|---|---|---|---|---|
| AVB 850 | All tooth shapes | All tooth shapes | NO | NO |
| SVG 850 | All tooth shapes | Flat teeth | YES | NO |
| MD | All tooth shapes | All tooth shapes | NO | NO |
| MVB 850 | All tooth shapes | Flat teeth | NO | NO | MD mini | Flat teeth | Flat teeth | NO | NO |
| GBT 850 mono | NO | NO | NO | One side at a time |
| GBT 850 DUO | NO | NO | NO | Two sides at a time |
| GBT 851 DUO | NO | NO | NO | Two sides at a time |
