SPECIFICATIONS
VIDEOS
| Saw blade diameter | from 100 to 850 mm (from 4" to 33,5") |
|---|---|
| Saw blade bore diameter | From ø10 mm. |
| Blade thickness | Up to 8 mm. |
| Tooth pitch | Up to 125 mm. |
| TOP GRINDING | |
| Clearance angle | From +5º to +25º |
| Bevel angle | From -45º to +45º |
| Grinding path | Up to 25 mm. |
| FACE GRINDING | |
| Hook angle | From -10 to +25º |
| Grinding path | Up to 25 mm. |
| Technical data | |
| Grinding wheel motor | 0,33 kW |
| Grinding wheel speed | Adjustable from 2500 to 5000 RPM |
| Grinding wheel diameter for top shape | ø150 mm | Grinding wheel diameter for face shape | ø175 / Ø200 mm |
| 5 CNC axis | A: Feed pawl, B: Tooth hook angle, X: Sharpening load, Y: Tooth bevel angle, Z: Sharpening travel |
| Machine dimensions | 1410 x 1225 x 1800 mm. |
| Machine weight | 640 Kg |
| Available versions | Half enclosure - Full enclosure. |

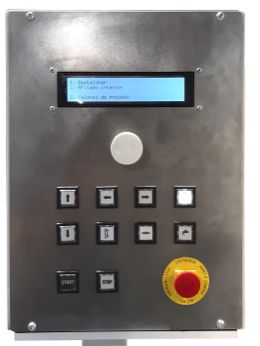

Machine control panel
It allows the programming of the machine, among the programmable values are:
- Tooth angle programming: The grinding wheel axis will automatically move to the value entered in the program.
- Sharpening path
- Sharpening load
- Sharpening speed
- Tooth pitch
- Advancement speed of the tooth advancement claw
- Number of teeth
- Broken teeth

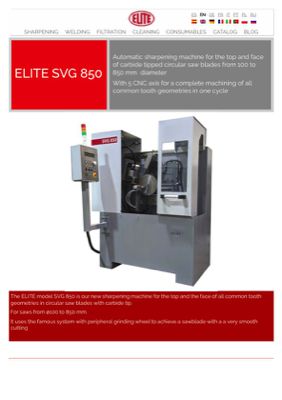

Automatic sharpening machine for the top and face of carbide tipped circular saw blades from 100 to 850 mm diameter
With 5 CNC axis for a complete machining of all common tooth geometries in one cycle
The ELITE model SVG 850 is our new sharpening machine for the top and the face of all common tooth geometries in circular saw blades with carbide tip.
For saws from ø100 to 850 mm.
It uses the famous system with peripheral grinding wheel to achieve a sawblade with a a very smooth cutting
Technical data
HIGHLIGHTS
- 5 CNC axes for automatic work programmable from the control panel
- Programmable tooth pitch
- Automatic sharpening of the top and face of circular saw blades with carbide tips
- Easy to use
- Very compact machine with a wide range of disc diameters: from 100 to 850 mm.
AVAILABLE WITH COMPLETE ENCLOSURE
TOP GRINDING
Triple chip tooth in one pass
FACE GRINDING
Alternate tooth
ELITE SVG 850

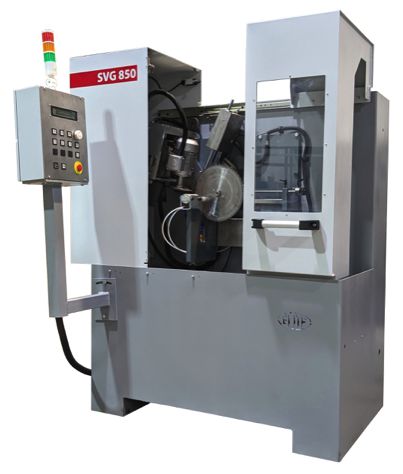

Version with half enclosure
To get the same machine in its most economical form

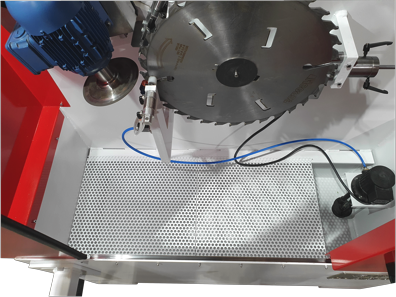

Coolant tank
Big coolant tank with capacity up to 225 liters

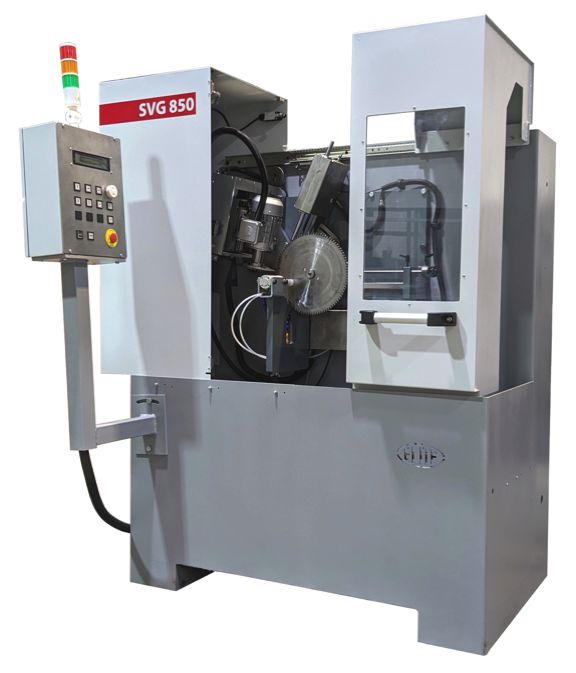

Version with full enclosure
With same exterior size and an easy to open door
| Model | TOP GRINDING | FACE GRINDING | BACK OFF GRINDING | SIDES GRINDING |
|---|---|---|---|---|
| AVB 850 | All tooth shapes | All tooth shapes | NO | NO |
| SVG 850 | All tooth shapes | Flat teeth | YES | NO |
| MD | All tooth shapes | All tooth shapes | NO | NO |
| MVB 850 | All tooth shapes | Flat teeth | NO | NO | MD mini | Flat teeth | Flat teeth | NO | NO |
| GBT 850 mono | NO | NO | NO | One side at a time |
| GBT 850 DUO | NO | NO | NO | Two sides at a time |
| GBT 851 DUO | NO | NO | NO | Two sides at a time |
