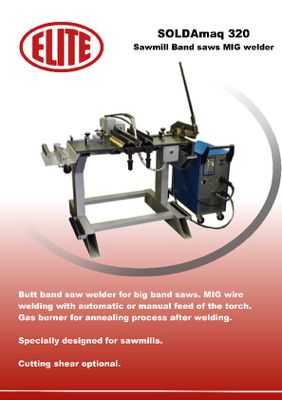

Band saw welder for big band saws. MIG wire welding, with automatic or manual feed of the torch.
Gas burner for annealing process after welding.
Specially designed for sawmills.

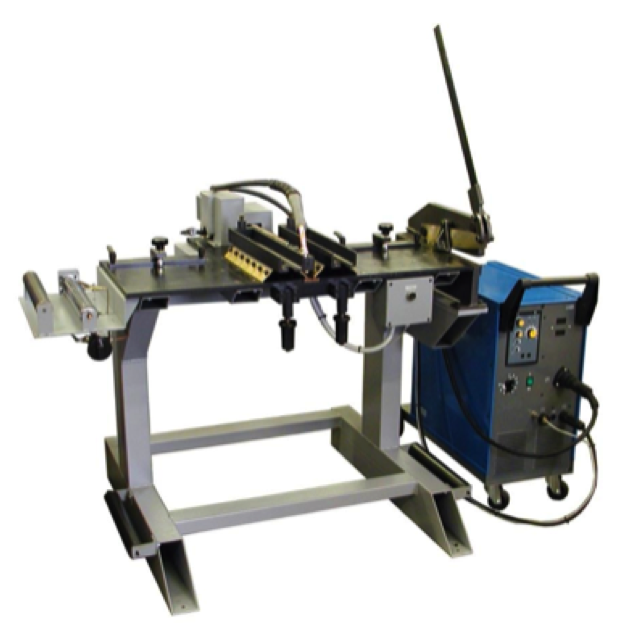

The Elite SOLDAmaq 320 is our bands saw welding machine with "MIG" welding system suitable for welding and repairing steel saw blades for sawmills from 60 to 320 mm (2,36" up to 12,5")
Fast and precise band saw welding: Just follow the welding parameters we provide you with depending on the thickness and width of the saw, close the saw clamping jaws and press the welding button.
Cracks and breaks of band saws can also be repaired with the same welder.
It allows both automatic welding and manual mode for repairs.

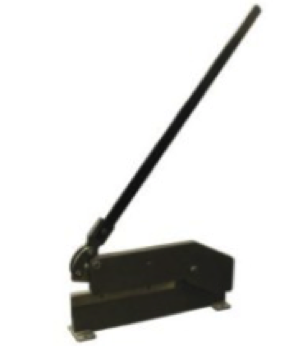

Cutting shear avalaible as an option
| Bandsaw width | from 60 to 320 mm (2-1/3" to 13,2"). |
|---|---|
| Bandsaw thickness | from 0,7 to 2 mm (0,027" a 0,078") |
| Installed power | 9 kW |
Technical data
Available versions
| Model | Packing size | Weight |
|---|---|---|
| SOLDAmaq 320 | 1580 x 1680 x 1960 mm | 430 Kg. |
HIGHLIGHTS
- Welding and annealing in the same machine
- In addition to welding the band saws, the saw mill bands can also be repaired with gaps or breaks
- MIG welding system
Digital thermometer avalaible as an option
SETUP FOR WELDING PROCESS
WELDING PROCESS
ANNEALING PROCESS
