Carbide-tipped side grinding machine for circular saws equipped with cooling system
Single wheel system
For sharpening the tooth flanks after a circular saw repair or complete re-tipped

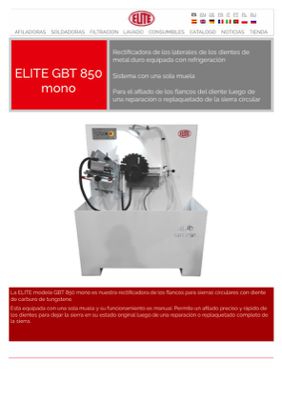

The ELITE model GBT 850 mono is our sides grinder for circular saws with tungsten carbide teeth.
It is equipped with a single wheel and its operation is manual.
Allows precise and fast sharpening of the teeth to leave the saw in its original state after a complete re-tipping of teeth or partial saw repair.
| Saw blade diameter | 100 to 850mm (4" to 33.5") |
|---|---|
| Saw blade hole diameter | From ø10 mm. |
| Saw blade body thickness | Up to 8 mm. |
| Tooth pitch | Any tooth pitch is possible |
| SIDES GRINDING | |
| Sharpening travel | Up to 40mm. |
| Rake angle | From -15º to +30º |
| Radial cutting angle | From +5º to -5º |
| Tangential cutting angle | From 0º to 5º |
| REFRIGERATION EQUIPMENT | Optionally available |
| Tank capacity | 220 liters |
| Coolant flow rate | Up to 40 litres/minute |
| TECHNICAL DATA | |
| Wheel motor | 0.75kW |
| Wheel speed | 9000 RPM |
| Grinding wheel diameter | ø100mm. |
| Grinding wheel hole diameter | ø20mm. |
| Machine dimensions | 1300 x 800 x 1600mm. |
| Machine weight | 400 Kg. |
HIGHLIGHTS
- Any tooth pitch is possible
- Integrated cooling unit as an option
- Robust and very simple design that allows continued use of the machine without breakdowns
- Easy to use
- Very compact machine with a wide range of disc diameters: from 100 to 850 mm.

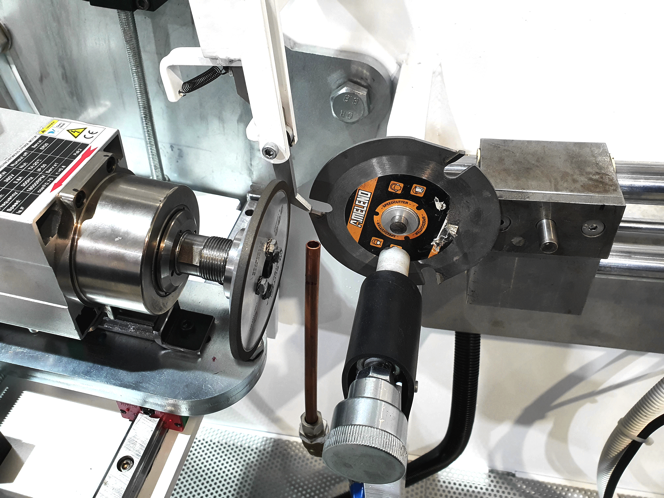

SHARPENING THE SIDES OF THE TEETH

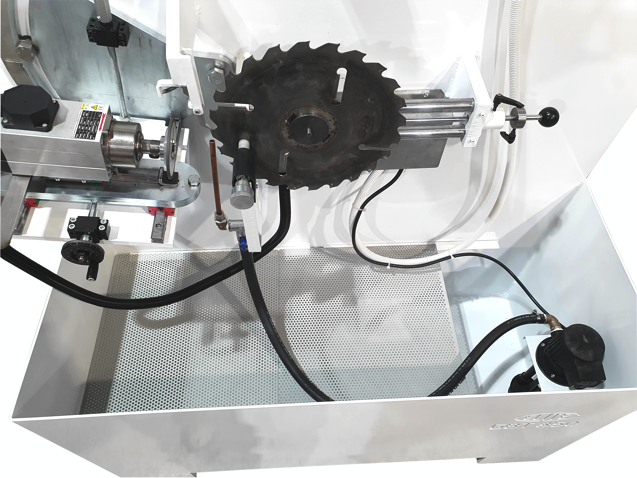

Integrated refrigeration unit
Allows wet sharpening for better surface quality and longer grinding wheel life.
It integrates a 200 liter tank with removable grids for easy cleaning.
Available as an option.

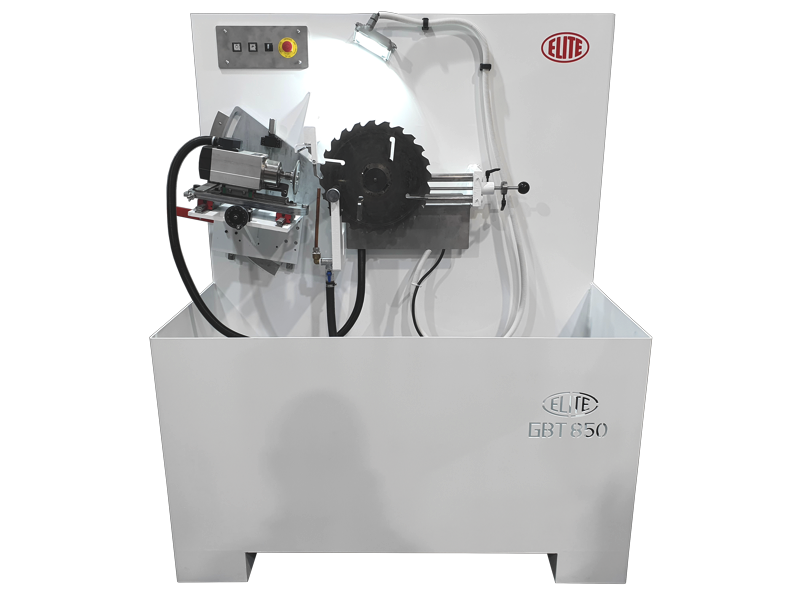

ELITE GBT 850 mono
Saw diameter from 100 mm.
For grinding the flanks of scoring discs or portable machines.
Allows the indexing of any type of tooth pitch.

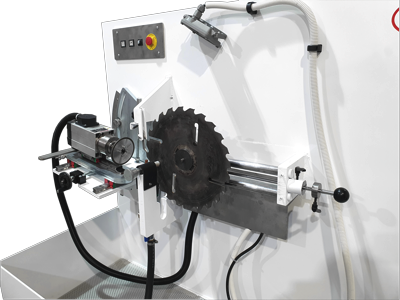

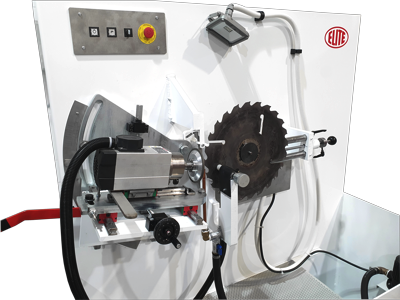

Simple and easy to use control panel
The machine includes the LED cabin light as standard.
The control panel allows the selection of sense of direction of the grinding wheel to the left or right.
The grinding wheel motor with a motorized direct spindle system rotates at 9,000 RPM for optimum sharpening quality with minimal stone wear. It is driven by a frequency converter.
Quick access
Clean design and easy access for the revision or repair of the machine.

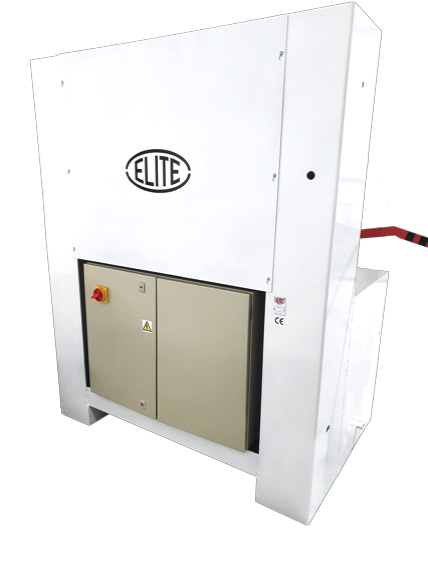

The electrical panel is located in the lower part and the mechanics in the upper part of the machine, protected by an easy-to-open cover.
| Model | TOP GRINDING | FACE GRINDING | BACK OFF GRINDING | SIDES GRINDING |
|---|---|---|---|---|
| AVB 850 | All tooth shapes | All tooth shapes | NO | NO |
| SVG 850 | All tooth shapes | Flat teeth | YES | NO |
| MD | All tooth shapes | All tooth shapes | NO | NO |
| MVB 850 | All tooth shapes | Flat teeth | NO | NO | MD mini | Flat teeth | Flat teeth | NO | NO |
| GBT 850 mono | NO | NO | NO | One side at a time |
| GBT 850 DUO | NO | NO | NO | Two sides at a time |
| GBT 851 DUO | NO | NO | NO | Two sides at a time |
