Knives sharpening machine with high grinding capacity.
Capacity up to 1230 mm. length
Automatic machine, simple compact and economic.
It requires a low maintenance.

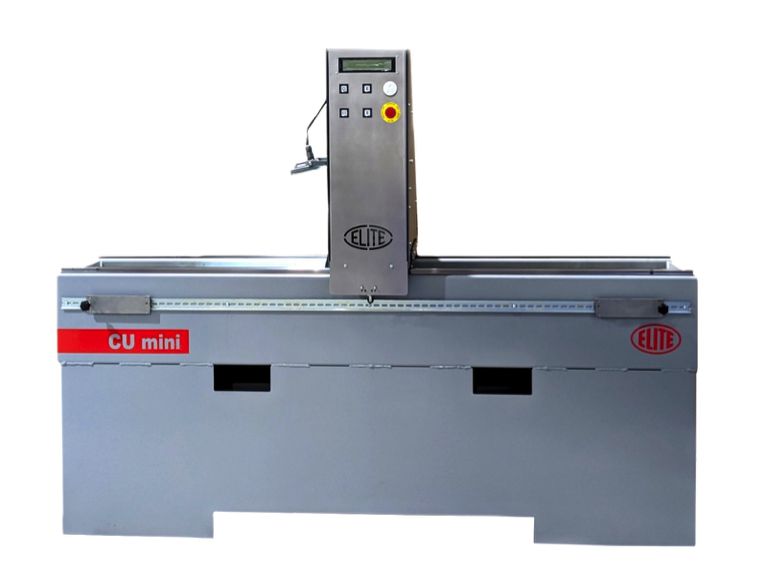

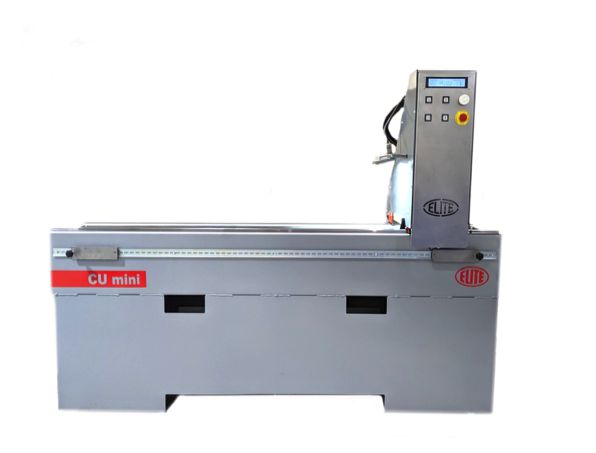

The Elite model CU mini 1200 are our smallest grinding machines for knives sharpening, which allow to sharpen knives up to 1230 mm long, with high standards.
Fully automatic, simple, compact and economical machine that requires a low maintenance.
With its powerful grinding motor and its vibration free system, it allows a good surface finish with good grinding times.
We have analyzed the work cycle of a sharpening workshop to optimize the use of the machine. The result is a control panel with just the right buttons, but inside there is a powerful PLC, so that the cycle of sharpness is automatic and of quality.
Once the grinding cycle is completed, you can select to activate the finishing cycle to obtain the highest quality and minimum surface roughness of the part.
| Grinding wheel motor power | 3 HP for 50Hz - 4 HP for 60 Hz version. Direct drive. |
|---|---|
| Grinding wheel diameter | 150 mm. |
| Carriage speed | from 1 to 15 m/min. |
| Max. distance between grinding wheel and chuck | 95 mm. |
| Magnetic chuck as standard | |
| Coolant tank | 90 liters |
| Max. connected power | 5 kW |
Technical data
Optional accesories
- Magnetic chuck with fixed polarity for tungsten carbide inserts.
- Independent coolant tank
Available versions
| Model | Size | Weight |
|---|---|---|
| CU mini 1200 | 2200 x 650 x 1500 mm. | 375 Kg. |
HIGHLIGHTS
- Very easy to use and maintain.
- Carriage movement free of vibrations.
- Guiding system that absorbs vibrations produced during grinding.
- High power of the grinding wheel motor: 3 HP for 50Hz versions, 4 HP for 60Hz versions.
- Control panel with automatic vertical movement of the grinding wheel.
- Adjustable carriage travel.
- Programable working cycle via 3 adjusting knobs.
WORKING CONCEPT
Clean and sleek design for and easy to use so as easy maintanance

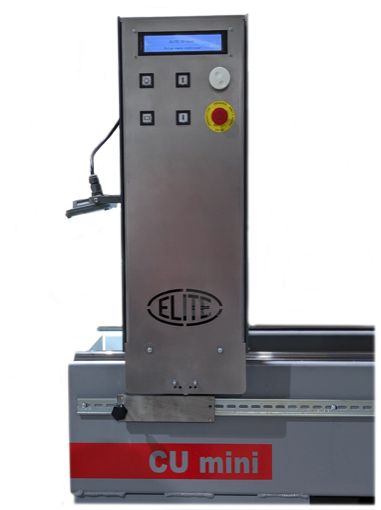

Control panel to program:
- Total infeed
- Partial infeed
- Spark out time
Grinding carriage translated by a poweful motor with worm reducer
ELITE CU mini 1200
Perfect match:

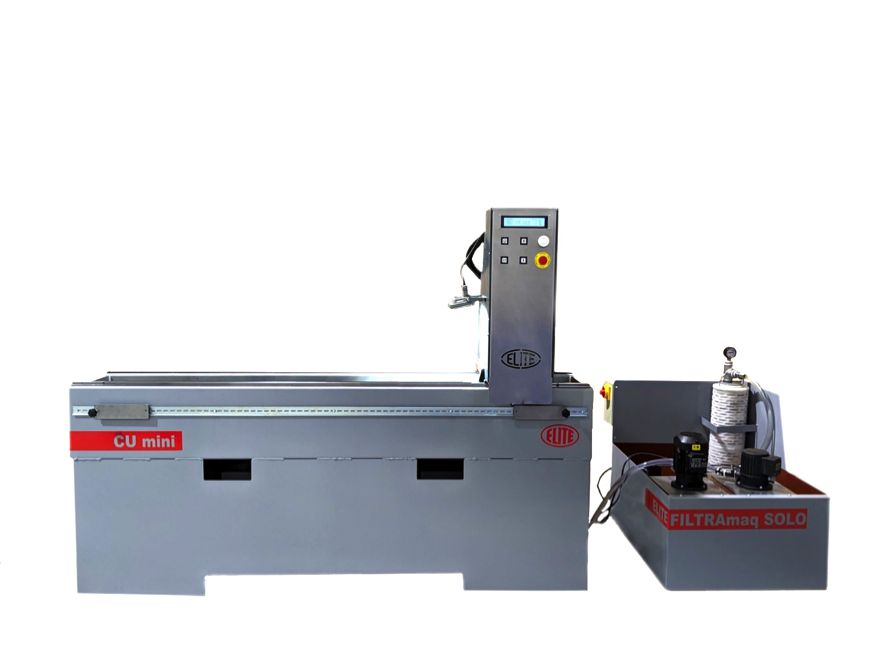

CU mini 1200 + FILTRAmaq SOLO
By equipping the CU mini with a FILTRAmaq SOLO filter system, you achieve reduced machine maintenance due to less wear and tear on moving parts such as bearings and guides. And also by sharpening your blades with a coolant completely free of contamination and abrasive particles, the final finish of the workpiece and its roughness will be much better.
The ELITE CU mini knife sharpener is suitable for a wide range of knives such as planer knives, wood chippers, knives for recycling, etc.
